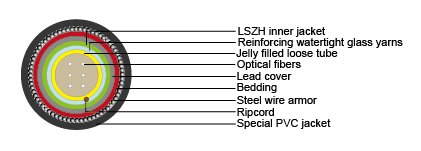

Steel Wire Armored Optical Fiber Cable with Lead Cover
Applications
These cables are suitable for underground use in all refineries. The special design can resists aliphatic and
aromatic hydrocarbon and U.V.
Standards
IEC 794-1-E1; IEC 794-1-E3; IEC 794-1-E4; IEC 794-1-F1; IEC 60332-3-22 Cat.A
Properties
Operating temperature: -20~60°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
| No. of Optical Fiber | Fiber Optic Type | No. of Tube | Diameter over Inner Sheath (mm) | Diameter over Lead Sheath (mm) | Diameter over Sheath (mm) | Diameter over Armor (mm) | Min. O.D. (mm) | Max. O.D. (mm) | Approx. Weight (kg/km) |
| 4 | 50/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 4 | 62.5/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 6 | 50/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 6 | 62.5/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 8 | 50/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 8 | 62.5/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 8 | 9/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 12 | 50/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 12 | 62.5/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 12 | 9/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 16 | 62.5/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 24 | 50/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
| 24 | 62.5/125 | 1 | 6.6 | 8.4 | 10.4 | 12.2 | 14.7 | 16.4 | 625 |
